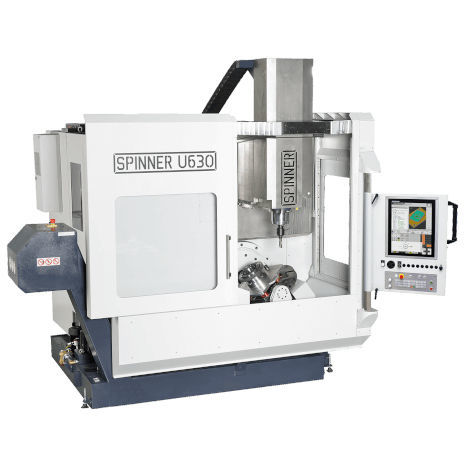

5-axis CNC machining center U5 seriesuniversalwith rotary tableBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Structure
- with rotary table
- Spindle mount
- BT 40, SK40, HSK-63
- Number of tool stations
- 24 tools, 32 tools
- Applications
- for large workpieces, for the mold industry
- Other characteristics
- high-speed, high-performance, compact, precision, with pallet changer, with automatic tool changer
- X travel
630 mm, 1,530 mm
(24.8 in, 60.24 in)- Y travel
530 mm
(20.87 in)- Z travel
465 mm
(18.31 in)- Rotational speed
12,000 rpm, 15,000 rpm, 20,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1, 125,664 rad.min-1)- Power
15.2 kW, 21 kW, 22 kW, 28 kW
(20.67 hp, 28.55 hp, 29.91 hp, 38.07 hp)- Work feed X-axis
30 m/min, 48 m/min
- Work feed Y-axis
30 m/min, 48 m/min
- Work feed Z-axis
30 m/min, 48 m/min
- Weight
8,000 kg, 10,500 kg
(17,636.98 lb, 23,148.54 lb)- Overall length
2,750 mm, 3,650 mm
(108.3 in, 143.7 in)- Overall width
2,530 mm, 2,540 mm
(99.6 in, 100 in)- Overall height
2,810 mm
(110.6 in)
Description
- with integrated swing/tilt-table in machine body
- for universal and precise 5-face and 5-axis machining applications
- moving column and therefore prefered for
- heavy workpieces
- Most modern high-level controls and drives
- available with standard pallet changing systems
