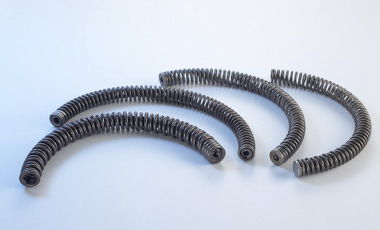

Safety spring archwiresteel
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type
- wire, arch
- Material
- steel
- Applications
- for automobiles
- Wire diameter
Max.: 8 mm
(0.31 in)Min.: 1 mm
(0.04 in)
Description
In cooperation with BRAND-GROUP in Anröchte/Germany, KERN-LIEBERS produces and sells arc springs in Asia. BKL is the specialist when it comes to innovative spring solutions for the automotive drive train.
For decades, we have been developing and producing highly-stressed bow springs for dual mass flywheels and torque converters.
Dimensions
Wire cross section: Round, oval, profiled, multi-arc
Designs
We offer bow springs as individual springs or in numerous spring set versions to meet multi-level characteristics
Optionally with progressive characteristic curve
Special features
Use of special spring wire qualities as “torsion wire” grade TD, with surface crack testing (40….60µm) and valve spring wire VD, "super clean" melted, shaved and surface crack tested to 40 µ failure depth.
Manufacturing with in-house developed technologies , which achieved protection by patents for all variants.
