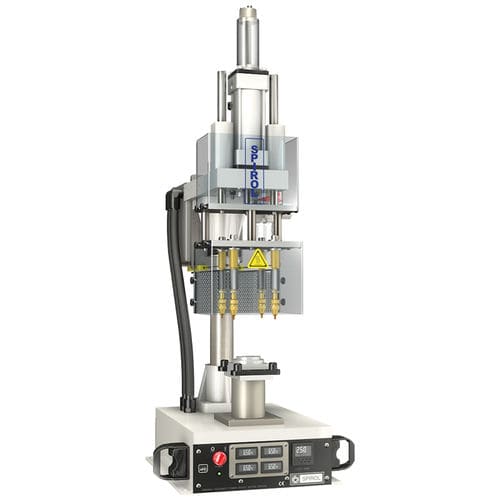

Pneumatic insertion machine HP

for threaded inserts

The SPIROL Model HP Pneumatic Heat Insert Driver provides an accurate and consistent method to install virtually any type of Heat/Ultrasonic Style Insert into thermoplastic assemblies. As much as 75% of an Insert’s performance is the direct result of how well it was installed. Therefore, in order to maximize performance, all of the factors that impact installation must be carefully controlled. SPIROL’s Model HP Pneumatic Heat Insert Driver has been designed to eliminate the dependency on the operator to control the factors of time, temperature and pressure to ensure nearly perfect flow of the plastic for optimal retention and performance. The Model HP Insert Driver is equipped with an easily adjustable temperature setting with Hi-Low temperature lockout for optimal melt and flow of plastic. This pneumatically driven machine has a pressure regulator and flow controls to precisely control the insertion force and speed. The Model HP Pneumatic Heat Insert Driver installs Inserts ranging in size from M2 – M8 metric threads and #2 – 3/8 unified threads. The machine can be easily configured to accommodate a variety of applications and the heat tips are easily interchangeable to accommodate various sized Inserts
