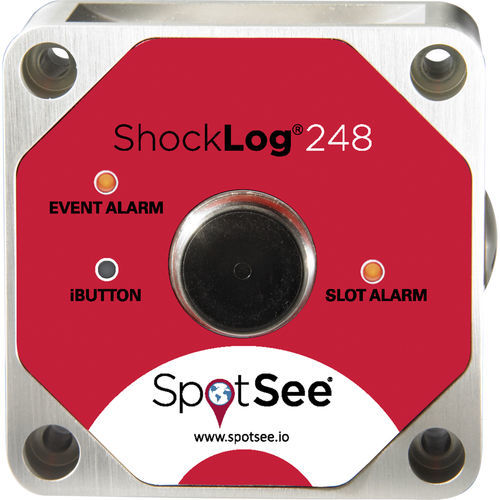

Acceleration data-logger ShockLog 248

shockvibrationforce

Monitors and records impact and environmental conditions experienced by any type of structure or equipment, whether in use, transit, or storage. The device alerts you when damage may have occurred, so you can respond promptly. ShockLog impact recorders help deter mishandling by increasing accountability at every step of the journey. The iButton® allows for easy access control during startup, shutdown and setup. A full journey report can be downloaded using the iButton while keeping the unit secure and tamper proof. • Records first plus the 14 most severe events (detailed curves) • Delivers notification of up to 128 events (event summary log) • Up to 262,000 time slots SHOCKLOG 248 FEATURES • Record max peaks X, Y, and Z and internal temperature • Record impact events • Optional temperature/humidity sensor can be built into unit • Field-proven triaxel piezoelectric accelerometer technology • iButton® and USB data transfer options • Self-contained unit design, free of cables and wires • User-definable alarm levels • LED lights for visual notification of alarms and warnings • Programmable wake-up values for maximizing battery life • IP67-rated, RF-screened • Show direction of impact—X, Y, and Z SHOCKLOG 248 APPLICATIONS • Logistics/Transport and Storage • Chemicals/Petro-Chemicals • Aerospace and Defense • Furniture and Fixtures • Forestry and Wood Products • Metal Fabrication • Energy and Utilities • Telecommunications Electronics • Computer Hardware • Auto and Truck Parts • HVAC • Manufacturing • Medical Devices and Supplies • Fiber Repeater
