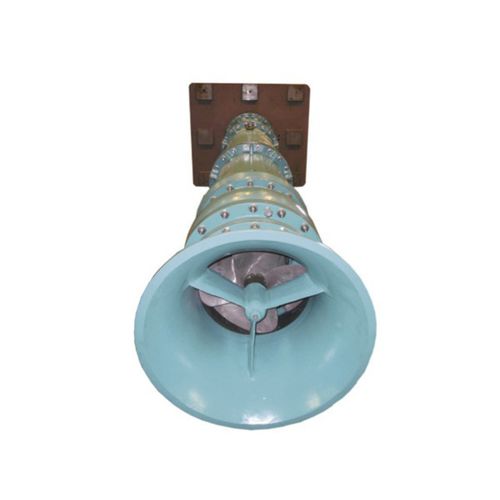

Turbine pump LLC VTPwaterwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Fluid
- water
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial, for wastewater treatment, for oil industry applications
- Applications
- discharge, firefighting
- Material
- stainless steel
- Other characteristics
- with mechanical seals, modular, dry, vertical
- Flow
Max.: 3,960 m³/h
(139,846.08022 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 170 m
(557'08" )Min.: 0 m
(0'00" )
Description
Vertical lineshaft, vertical electric motor or engine driven, dry or wet well
DISCHARGE & PERFORMANCE
• 200 mm to 600 mm
• Pumping length up to 60 m
FEATURES
• Cartridge mechanical seal
• Spacer couplings minimise seal change downtime
• High grade materials – stainless steel impellers & shafts
• Muff couplings aid assembly / disassembly
• Flanged riser pipework
• Modular design
• Extended thrust bearing life
• Stiff shaft construction
• Dry and wet well installations
