Paint pump AT oilwith electric motorsubmersible
Add to favorites
Compare this product
Characteristics
- Fluid
- paint, oil
- Operation
- with electric motor
- Priming
- submersible
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge, cooling, circulation, distribution
- Protection level
- robust
- Other characteristics
- high-efficiency, flange, in-line
- Flow
Max.: 576 m³/h
(20,341.24803 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 30 m
(98'05" )Min.: 0 m
(0'00" )
Description

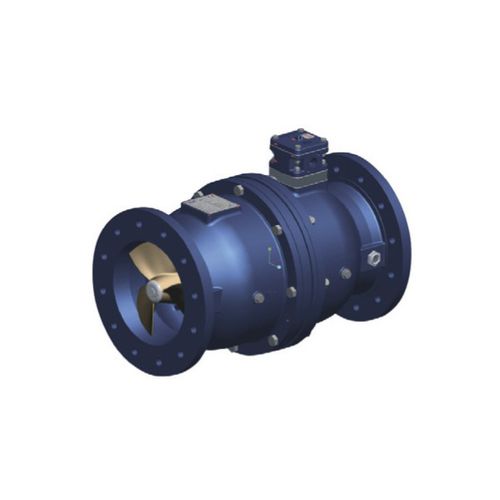

Inline, glandless oil submerged motor on common shaft with impeller
DISCHARGE & PERFORMANCE
• 50 mm to 250 mm
FEATURES
• Aluminium Casings - Robust lightweight design
• Proven long reliability in industry
• Hand built in England with British castings and European Motors
• Entire range 3D CAD modelled
• Every pump is performance and pressure tested on our warm oil test rig (documented results)
• Duty performance to your specific requirements
• Flexible to your needs - flange drillings, paint and material specifications to your needs
• Fully weatherproof
• Oil cooling circulation in:
- Power distribution transformers
- Locomotive transformers and converters
