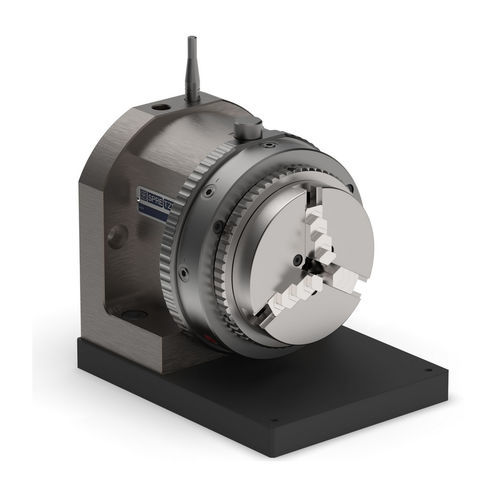

Rotating unit PDE

With the use of the precision rotary unit PDE cylindrical workpieces with a diameter up to 134 mm can be rotated with high accuracy. The mounting can be done in horizontal or vertical position on the base plate. The precision rotary unit can be ordered without base plate and without three-jaw chuck. Advantages at a glance Version: For individual testings, serial testings with optional accessories possible Precision rotary unit horizontally and vertically mountable Material: steel, rust-resistant, aluminium Finish precision grinded, hard coated Three-jaw chuck DBF 100 VA, rust-resistant, 100 mm diameter (repetition accuracy 0,005 mm) or three-jaw chuck DBF 140 VA, rust-resistant, 140 mm diameter (repetition accuracy 0,005 mm) Options: Articulated arm with holder for gauging instruments High precision clamping chuck SF HQ, rust-resistant, 100 or 125 mm diameter (repetition accuracy 0,002 mm) s. Clamping tools for toolmaking and control Electric drive Support for swivelling holder
