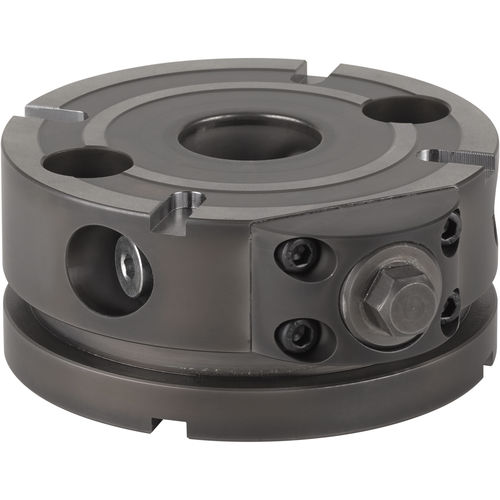

Mechanical clamping unit ZPS 10 / ZPS 20

machiningrapid zero-pointwith indexing

Mechanical zero point clamping unit with indexing grooves offset by 90° for time-optimized clamping during cutting and non-cutting machining. Especially suitable for the modular design of clamping solutions via zero point clamping system. This mechanical clamping unit has high holding- and pull-in/locking forces. The clamping unit can be positioned on the machine table and fastened via mechanical clamping elements at the circumferential clamping edge. The positioning bore for marking sleeves and a through bore for fastening via M12 countersunk screw on the grid pallets are provided on the underside. The locating bore for the ZPS 20 clamping nipple is also already made in the unit. Advantages at a glance Mechanical opening and closing High holding force Universal mounting and combination possibilities Material: modified steel Finish: surface hardened Repetition accuracy 0.01 mm
