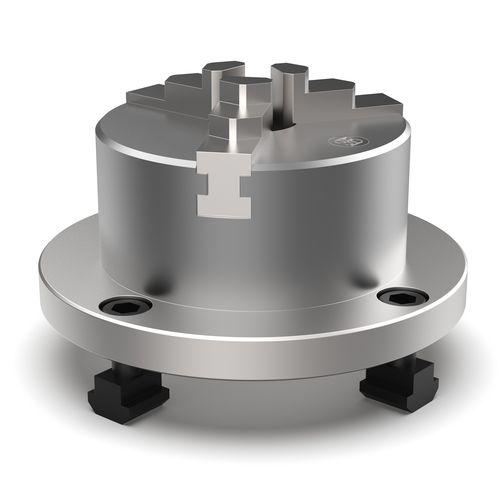

3-jaw workpiece clamping chuck DBF DINprecisionself-centering
Add to favorites
Compare this product
Characteristics
- Machine mount
- DIN
- Other characteristics
- precision, self-centering
- Number of jaws
- 3-jaw
- Clamping range
Min.: 80 mm
(3.15 in)Max.: 400 mm
(15.75 in)
Description
Precision spiral ring chuck made of steel with cylindrical centering according to DIN 6350. The chuck enables uniform clamping force by centric clamping jaws as well as high runout accuracy.
Three-jaw chucks with base plate allow an easy mounting on different machine tables with T-slot 14 mm or on customer-specific mounting hole pattern.
Two-, four- and six-jaw chucks and mechanical wedge bar chuck DBF-KS available on request.
Advantages at a glance
High precision
High clamping force
Wide clamping range
For external and internal clamping
Material: steel
Finish: hardened and grinded (step jaws)
Explanation type: model Ø (mm)
Type: DBF 80, DBF 100, DBF 125, DBF 160, DBF 200, DBF 250, DBF 315, DBF 400.
Please specify the type when raising a request.
