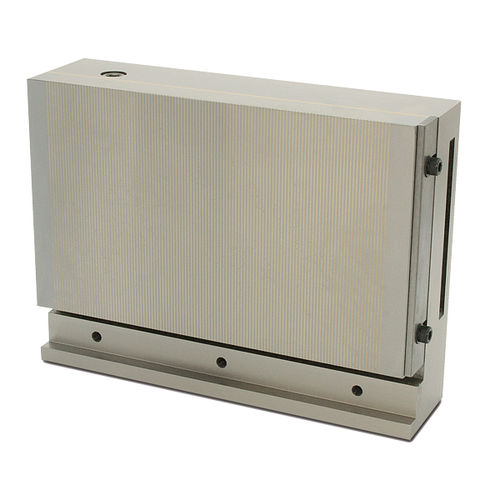

Permanent magnet magnetic chuck SPNM-W rectangularfor grinding
Add to favorites
Compare this product
Characteristics
- Technology
- permanent magnet
- Type
- rectangular
- Applications
- for grinding
Description
Permanent magnetic clamping plate SPNM-W has the same magnetic characteristics as clamping chuck SPNM but can be used horizontal and vertical.
SPNM-W are used for grinding of edges on plates, for grinding angles on plates or for wirecutting. Normally, the SPNM-W is just clamped onto the electric-clamping plate of the surface grinding machine.
Finish
Neodym-magnet system
Steel body
Pole pitch 1.4+0.5mm
Nominal holding force 100 N/cm²
Magnetic field height 5mm
Pole plate wearing limit 6mm
