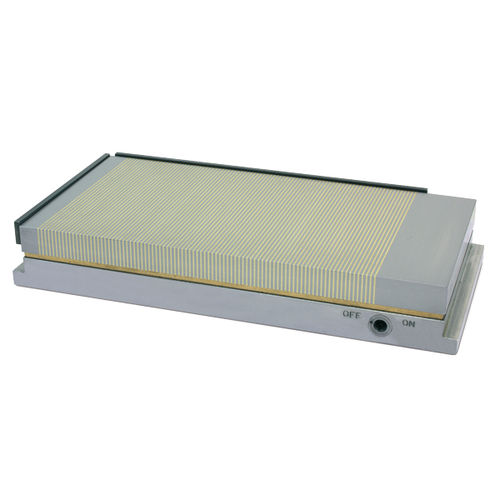

Permanent magnet magnetic chuck SPSF

rectangularfor EDM

Permanent magnetic clamping plate type SPSF, designed for EDM and grinding of small and thin components. With very low height and low weight, the plate can also be placed uppon palletizing systems. The low magnetic field prevents the magnetization of the machining tools. The clamping plate is operated by a removable Allen key. Finish Neodym-magnet system Steel body Pole pitch 1.5 + 0.8 mm Nominal holding force 80 N/cm² Magnetic field height 6 mm Pole plate wearing limit 5 mm
