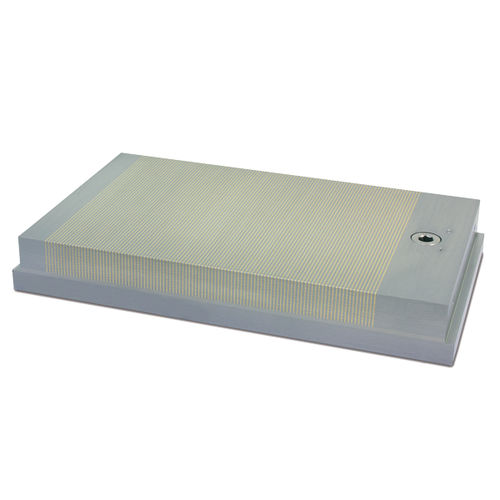

Permanent magnet magnetic chuck SPNS

rectangularfor machine tools

Permanent magnetic clamping plate type SPNS are a special type of the high precision magnetic chuck SPNM. ON-OFF switching from above. The hight is reduced to a minimum of 35 mm. These chucks are used where a thin and light design is important or if there is not enough room to switch from the side. The low magnetic field with high induction lines prevents the magnetization of the machining tools. The clamping plate is operated by a removable Allen key. Finish Neodym-magnetic system Steel body Pole pitch 1.4 + 0.5 mm Nominal holding force 100 N/cm² Magnetic field height 5 mm Pole plate wearing limit 6 mm
