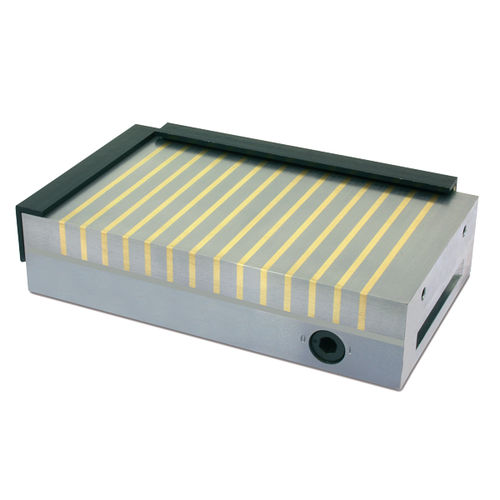

Permanent magnet magnetic chuck SPNEO rectangularfor machines
Add to favorites
Compare this product
Characteristics
- Technology
- permanent magnet
- Type
- rectangular
- Applications
- for machines
Description
Permanent magnetic clamping plates type SPNEO are extremely strong and compact clamping chucks for heavy machining. Pieces of ca. 30 x 15 x 6 mm can be clamped with max. achievable lifting force. Also on rude surfaces good lifting forces can be achieved. The clamping plate is operated by a removable Allen key.
Finish
Dual Neodym-magnetic system
Steel body
Pole pitch 11 + 4 mm
Nominal holding force 150 N/cm²
Magnetic field height 10 mm
Pole plate wearing limit 6 mm
