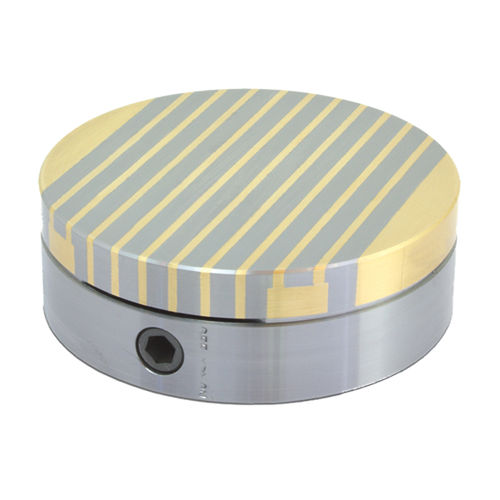

Neodymium permanent magnet magnetic chuck SPRN

roundfor grinding

Permanent magnetic chucks SPRN, with Neodym magnetic system and low construction height are used for clamping smaller workpieces with adequate material thickness, especially for grinding and assembly work. In all steel poles you can drill 15 mm deep. A centre drilling of max 22 x 5 mm, or a thread M8 x 12 mm can be brought in. Finish Neodym-magnetic system Steel body Pole pitch 11 + 3 mm Nominal holding force 80 N/cm² Magnetic field height 6 mm Pole plate wearing limit 8 mm Operating angle MAG – DEMAG 500°
