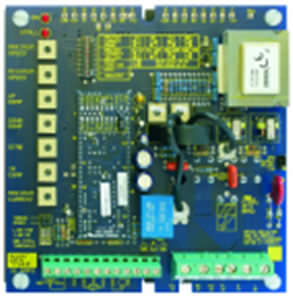

DC speed controller 100 - 246 VAC | 1600i

To allow you to easily integrate with other drives and control equipment, the 1600i is a fully isolated, single direction DC motor controller. Suitable for systems integrators, panel builders and OEM manufacturers, the compact design makes upgrading your existing control system easy. You will also save space in new designs. At a glance: Model 1600i Control DC motors rated up to 16 Amps (2.2KW/3HP) Fully isolated controller Compact DC drive Switched maximum current ranges for easy matching to motor current rating Suitable for permanent magnet, shunt wound or universal motors 150 x 150 x 90(mm) H x W x D Technical highlights: Model 1600i On board relay indicates zero speed and/or motor overload PLC compatible input and output signals Precision tacho rectifier Numerous inputs and outputs for complex system applications Torque control input for basic winding or tension control, with overspeed limiting Extra 50% peak torque for rapid acceleration or shock loads Switched maximum current ranges for easy matching to motor current rating Switch selectable Tacho or Armature voltage feedback Adjustable Stability control for optimum motor response Extra 50% peak torque for 30 seconds prior to stall trip operation.
