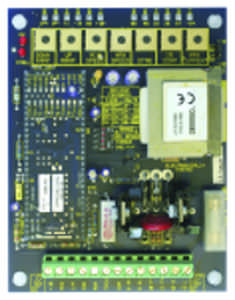

DC speed controller 100 - 264 VAC | 400i

Fully isolated, allowing you to easily upgrade an existing DC motor control application. The model 400i is a compact and reliable way to control permanent magnet or shunt wound DC motors in one direction of rotation. At a glance: Model 400i Compact DC drive For controlling motors up to 4 Amps (0.55KW/0.75HP) Isolated control electronics for easy connection to other drives/equipment Suitable for permanent magnet, shunt wound or universal motors Robust screw terminals 160 x 100 x 50(mm) H x W x D Technical highlights: Model 400i Extra 50% peak torque for rapid acceleration or shock loads Numerous inputs and outputs for complex system applications 4-20ma and 0-20ma loop input option as standard Torque control input for basic winding or tension control, with overspeed limiting PLC compatible input and output signals Tachogenerator or armature voltage speed feedback Zero reference interlock facilit Sophisticated dual loop control
