Single-phase DC drive 90 - 246 VAC | 370motor
Add to favorites
Compare this product
Characteristics
- Type
- single-phase
- Other characteristics
- motor
- Power
Min.: 0.25 kW
(0.34 hp)Max.: 0.55 kW
(0.75 hp)- Intensity
4 A
Description
Simple, reliable and compact. Make controlling DC motors easier with adjustable parameters including: minimum and maximum motor speed, armature current, up ramp and IR compensation.

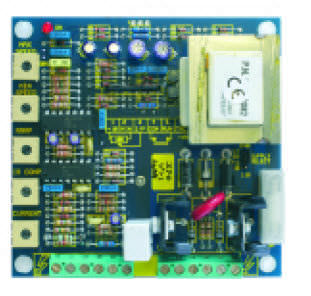

At a glance: Model 370
- Compact DC drive
- Control motors up to 3.7 Amps (0.55KW/0.75HP)
- Suitable for permanent magnet, shunt wound or universal motors
- Robust screw terminals
- 100 x 100 x 42(mm) H x W x D
Technical highlights: Model 370
- Adjustable current overload protection
- Adjustable up ramp rate between 1 and 20 seconds
- Infinitely variable speed adjustment via remote potentiometer
- Drive run input
- Integral AC supply fuse
- Remote stop/start signal input facility
- Tachogenerator or armature voltage speed feedback
- Adjustable IR compensation for improved AVF speed regulation
- Sophisticated dual loop control
- Electronic soft start
