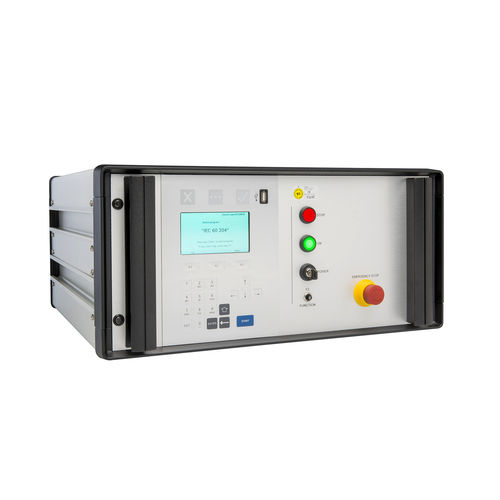

Hipot tester KT 1880B

insulationelectrical safetyhigh-voltage

• Plug-in 19'' / 5 HU • High voltage test AC: 100 - 5,500 V / 0 - 3 mA • High voltage test DC: 100 - 6,000 V / 0 - 10 mA • Insulation measurement DC: 100 - 6,000 V / 250 kΩ - 1 GΩ • Ground bond test AC: 10 - 30 A / 0 - 400 mΩ • Equivalent leakage current test AC: 100 - 270 V / 0 - 10 mA • Continuity test DC: 24 V / 0 - 600 mA • Function test / current consumption AC: 4 A (option: 1 A, 10 A or 16 A) • Wide-range power supply unit: 90 to 253 V / 50 Hz / 60 Hz The KT 1880B hipot safety analyser combines high-voltage testing (AC and DC) as well as ground bond, insulation, equivalent leakage current, function and continuity testing in a single device. The KT 1880B is ideal for fast, cost-effective and convenient safety testing in accordance with current national and international standards (IEC, EN, UL, VDE etc.). The KT 1880B offers maximum convenience and ease of use thanks to the integrated 4.3" TFT color display. Thanks to the individually configurable test programs, a fully automatic test plan can also be created for each product. The DUT only needs to be connected once - time-consuming reconnection is a thing of the past! With a short-circuit current of 3 mA AC / 10 mA DC, the KT 1880B test device is safety current-limited (in accordance with EN 50191) and makes it easier to set up a safe workplace. This means that it can be used by non-qualified electricians. The KT 1880B also has a fully electronic high-voltage generator, which ensures accurate and fast testing.
