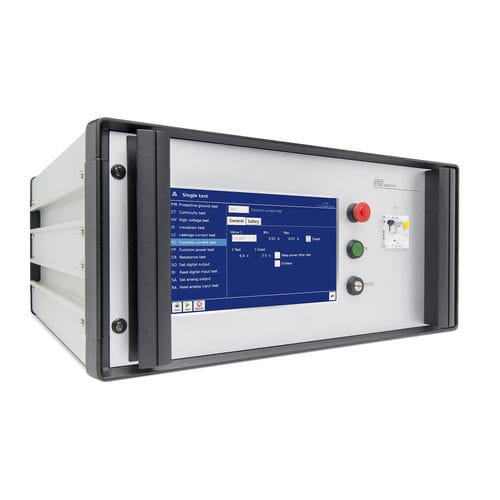

Hipot tester KT 1886J

insulationelectrical safetyhigh-voltage

• Plug-in 19" / 5 HU • High voltage test AC: 100 - 5,500 V / 0 - 100 mA • High voltage test DC: 100 - 6,000 V / 0 - 50 mA • Insulation measurement DC: 100 - 6,000 V / 250 kΩ - 1 GΩ • Ground bond test AC: 1 - 30 A / 0 - 10 Ω  • ARC detection (optional): 0 - 100 % • Equivalent leakage current test AC: 50 - 270 V / 0 - 10 mA • Continuity test DC: 24 V / 0 - 600 mA • Short-circuit test DC: 24 V / > 600 mA • Resistance measurement (optional): 0 - 1.000 Ω • Function test AC/DC: 0 - 300 V / 0 - 16 A • Active power measurement (optional): 0 - 4,000 W • Wide-range power supply unit: 90 to 253 V, 50 Hz / 60 Hz The KT 1886J hipot safety analyser combines high-voltage testing (AC and DC) as well as ground bond, insulation, equivalent leakage current, function and continuity testing in one device. The function test can also be supplemented by a power measurement, and a resistance measurement between 0 - 1000 Ω can also be integrated as an option. The KT 1886J is ideal for fast, cost-effective and convenient safety testing in accordance with current national and international standards (IEC, EN, UL, VDE etc.). The 10.1" touch color display integrated as standard ensures maximum convenience and ease of operation. Simple and clear instructions on the display make operation intuitive and efficient. Thanks to the individually configurable test programs, a fully automatic test plan can also be created for each product. The DUT only needs to be connected once - time-consuming reconnection is a thing of the past!
