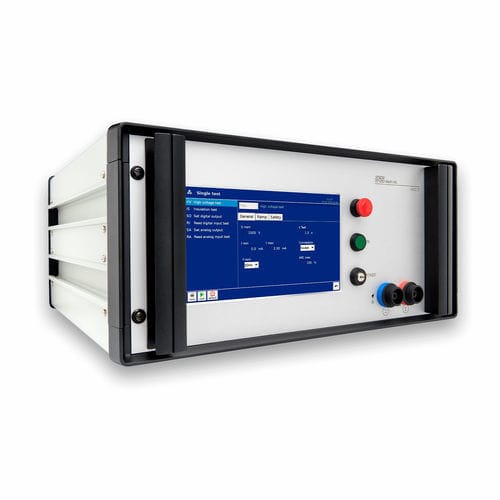

Hipot tester HA 1885J

insulationhigh-voltagefor electrical appliances

• Plug-in 19" / 5 HU • High voltage test AC: 100 - 5,500 V / 0 - 100 mA • High voltage test DC: 100 - 6,000 V / 0 - 100 mA • Insulation measurement DC: 100 - 6,000 V / 250 kΩ - 1 GΩ • ARC detection (optional): 0 - 100 % • Wide-range power supply unit: 90 V to 253 V, 50 Hz / 60 Hz The HA 1885J hipot tester combines high-voltage testing (AC and DC) and insulation testing in a single device. The HA 1885J is ideal for fast, cost-effective and convenient safety testing in accordance with current national and international standards (IEC, EN, UL, VDE etc.). The standard integrated 10.1" touch color display ensures maximum convenience and ease of use. Simple and clear instructions on the display make operation intuitive and efficient. Thanks to the individually configurable test programs, a fully automatic test plan can also be created for each product. In accordance with many international standards, the HA 1885J has a high-voltage generator with an output of 500 VA at a short-circuit current of 200 mA.
