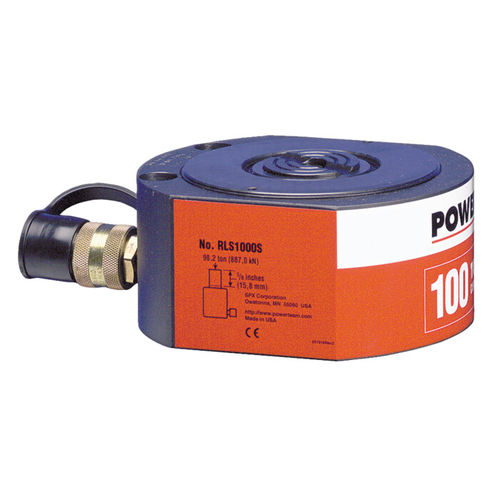

Low-profile cylinder RLS series

hydraulicpistonsingle-acting

Single-Acting, Spring-Return Power Team cylinder, Ideal for confined areas from 1 5/8" (266,7 mm) to 4" (542,9 mm) clearance. Cylinder body, piston and gland nut are each Power Team treated for corrosion and abrasion resistance. The RLS Series is designed with the standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) to minimize the effects of off center loading. A unique heavy-duty spring provides fast piston return. A 9796 3/8" NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8" coupler which is not angled). Oil ports are 3/8" NPTF. Couplers on all cylinders, except RLS50, are angled upward for extra clearance. Features IDEAL LOW CLEARANCE OR TIGHT CONSTRAINT APPLICATIONS REQUIRING HIGH FORCES. ■ Low height starting at 41,3 to 101,6 mm. ■ Cylinder body, piston and gland nut are “Power-Tech” treated for corrosion and abrasion resistance. ■ Standard domed piston rod (5-30 tons) or swivel cap (50-150 tons) minimize effects of off-center loading. ■ Unique heavy-duty spring provides fast piston return on all cylinders, except RLS50. ■ Coupler is angled upward for extra clearance, except RLS50. ■ Complies with ANSI / ASME B30.1 safety standards.
