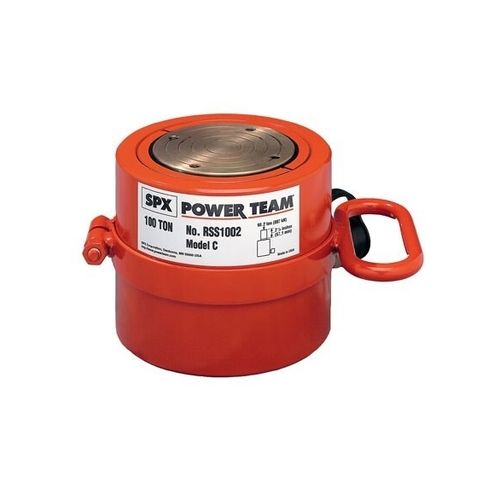

Short-stroke cylinder RSS series

hydraulicpistondouble-acting

Single-Acting and Double-Acting Spring-Return cylinder. The RSS Series cylinder is ideal for confined areas from 3 1/2" (88,9 mm) to 11 7/16" (290,2 mm) clearance. Power Tech plated piston rods and gland nuts resist scoring and corrosion. Heavy duty return spring of the RSS Series cylinder provides fast piston return & low collapsed height. Coupler on 10 thru 50 ton models is angled upward 5° for added clearance. The RSS Series cylinder features a grooved piston top to keep loads from sliding. Cylinders can be “dead-ended” at full capacity. Removable carrying handles on 100 ton and 250 ton models. Features IDEAL FOR CONFINED AREAS WITH 88,9 TO 290,5 MM CLEARANCE. ■ “Power-Tech” nitro-carburization surface treatment inhibits corrosion and provides exceptional durability for the rod and piston. ■ Heavy-duty return spring (except for double-acting models) provides fast piston return & low collapsed height. ■ Coupler on 10 - 50 ton models is angled upward 5° for added clearance. ■ Grooved piston top keeps load from sliding. ■ Cylinders can be “dead-ended” at full capacity. ■ Removable carrying handles on 100 and 250 ton models. ■ Complies with ANSI / ASME B30.1 safety standards.
