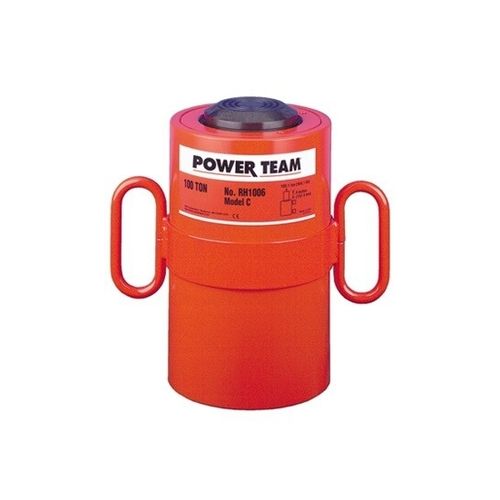

Hydraulic cylinder RH series

pistondouble-actingaluminum

Double-Acting industrial cylinder, Ideal for the pulling and tensioning of cables, anchor bolts, forcing screws, etc. The RH Series cylinder features interchangeable piston head inserts to a range of versatility in application. 30, 60, 100 Ton Double-Acting RH Series cylinders feature threaded collar built-in safety feature to prevent over pressurization of the retract circuit. Intricately designed the plated piston rod resists wear due to superior packings to provide high cycle life without leakage. Corrosion-resistant standpipe has “Power Tech” resistant treatment. Each cylinder has 9796 3/8" NPTF female half couplers. The 60 ton thru 200 ton steel models are equipped with removable carrying handles. Features IDEAL FOR CABLE PULLING AND TENSIONING, ANCHOR BOLTS, FORCING SCREWS, ETC ■ Cylinder body, piston and gland nut “Power-Tech” treated for corrosion and abrasion resistance. ■ Most models feature threaded collar, excludes the RH203 and RHA306 models. ■ All cylinders are furnished with a 9796 3/8” NPT female half coupler, except the RH120. ■ Aluminum cylinder body and piston are featured on the RHA306 cylinder. ■ Complies with ANSI / ASME B30.1 safety standards.
