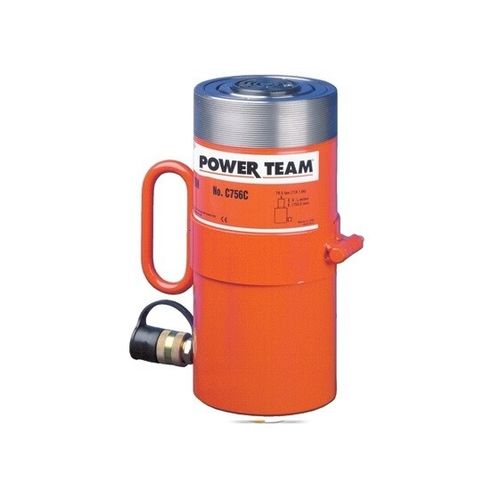

Hydraulic cylinder C series

with piston rodsingle-actingaluminum

Single-Acting, Spring-Return high quality, general purpose cylinder used for lifting and pressing. Designed to utilize aluminum bronze bearings to significantly reduce wear. Piston return speed and spring life are bolstered by Maximum sized springs. Constructed for durability, using a Solid steel cylinder body for integrity. Chrome plated piston rod resists wear and corrosion adding to the cylinder’s life cycle. Intricately customizable through the wide range of accessories available to thread onto piston rod, collar, or onto cylinder base. Features RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING. ■ Aluminum bronze bearing reduces wear caused by off-center loads. ■ Maximum sized springs speed piston return and increase spring life. ■ Collar threads are standard on all C-Series models, simplifying fixturing applications. ■ Removeable rubber boots protects collar threads during transport and storage. ■ Solid steel cylinder body for durability. ■ Chrome plated piston rod resists wear and corrosion. ■ Wide range of accessories available that mount onto the piston rod, collar, or base. ■ Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders. ■ A 3/8" NPTF female half coupler is standard. ■ Complies with ANSI / ASME B30.1 safety standards
