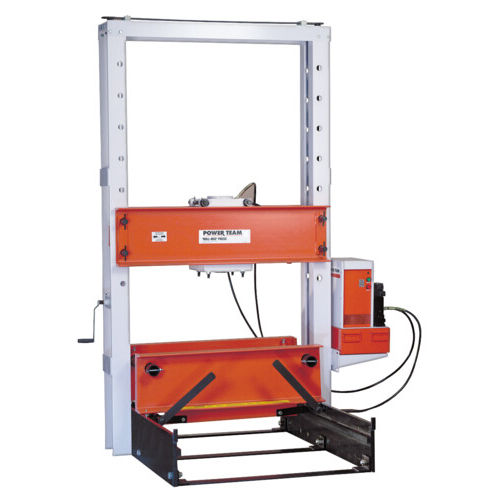

Hydraulic press RB series

electricstraighteningroller bed

The original, patented Roll-Bed® design where the bed rolls out for easy loading and unloading with a crane or other lifting device, supporting loads up to 3,000 lbs (1361 kg). The Roll-Bed Presses are available in 4 different capacities. Other features include: • Moveable work-head glides easily side-to-side for full off-center load capacity across the width of the upper frame. • “Daylight” is 50.5" x 60" (1,283 x 1,524 mm) for 80 and 100-ton models; 51.25" x 64" (1,302 x 1,625 mm) on 150 and 200-ton presses. • Fast approach of double-acting, 13 1/8" (334 mm) stroke cylinder is provided by PQ1204S “Quiet” electric/hydraulic pump with remote control hand switch. Operator can view work from all sides with fingertip control of cylinder piston travel. • Adjustable lower bed width for secure balancing and centering of heavy jobs. • Lifting mechanism has a turn crank handle to raise or lower upper bolster. Screw mechanism raises or lowers both sides evenly (a heavy-duty 1/2" drill motor can replace handle for automatic adjustment). Four locking pins hold bolster in place for pressing.
