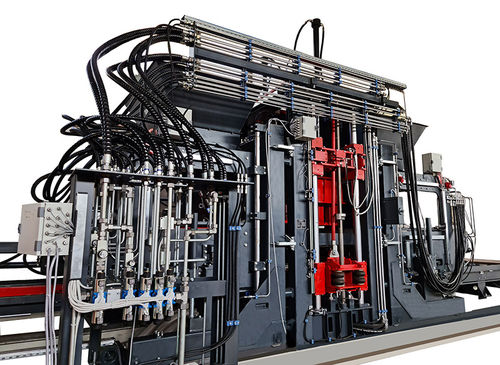

Concrete block making machine PRO 1000

stationary

Design of PRO 1000 concrete block making machine put this machines beside most flexible in the world. The most versatile machines in their class, the PRO machine series offers the largest variety of handling and cubing systems available. By upgrade of handling equipment on wet and dry line side, capacity of complete installation can be increased significantly. Main features This machine can be considered as an ultimate solution for the production of concrete elements providing the one to choose numerous options as an additional upgrade to the machine that can make production even more efficient: Synchrotronic vibration table Synchronized vibrators, using counter rotating shafts, provide programmable and variable vibration. SYNCHROTRONIC vibro-compaction design with 4 vibrators, provides uniform wave amplitude from the front to the rear of the mold. This creates a high density and homogeneous products and thus requires less cement. Easy for maintenance and adjustment SYNCHROTRONIC vibration system is one of the most innovative vibration systems on block machines today. Active agitator The base filling system filler box is equipped with agitator driven by heavy duty hydraulic motor. This device speed up filling concrete from filler box to mould cavities.. Agitator rollers run on same forklift profile as the filler box. There are different possibilities of grid shapes depending on mould used and agitator greed is easily exchanged for different mould types if necessary. Fast mould changing system Fast mould changing system for the machine PRO 1000 with pneumatic clamping of the mould and tamperhead.
