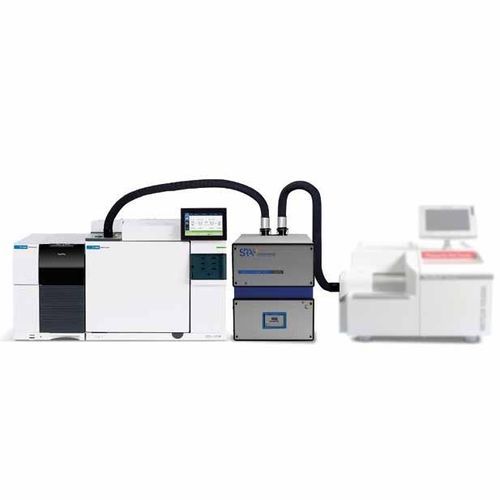

Gas chromatograph IST16

laboratoryGC/MSanalytical

Thermogravimetry combined with gas chromatography and mass spectrometry (TGA-GC/MS) can be one choice for the qualitative and quantitative analysis of evolved gases. During the thermal degradation cycle of the materials, the composition of the evolved gas changes too fast for a GC/MS analysis in its standard configuration. With IST Interface, the chromatographic separation time is no longer a limitation for the detailed study of complex thermal analysis profiles. IST16 interface allows to sequentially store in 16 loops several fractions of the gaseous effuent from the TGA and to automatically inject these samples into the GC/MS. The gases, evolved during the cycle of the TGA, are transmitted to the storage interface and then to the GC via heated and temperature controlled micro-volume transfer lines and IST16 is designed to be coupled to any TGA and GC/MS models. The IST16 is supplied with a dedicated interface. With IST16 Interface it is possible to work in: • Charge different loops following a time table filled by operator and then inject in the GC • Charge one single loop and direct injection in the GC.
