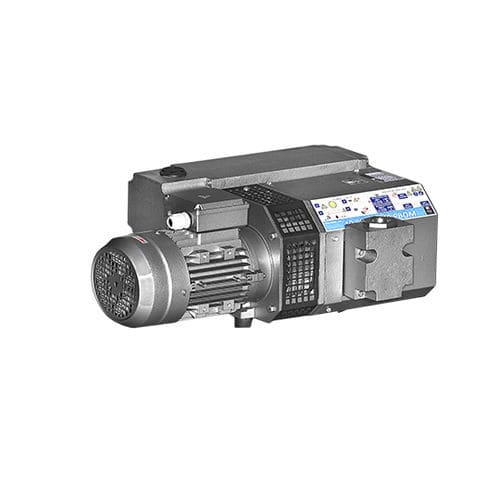

Rotary vane vacuum pump 41 PBOlubricatedsingle-stageflexible
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- lubricated
- Number of stages
- single-stage
- Applications
- suction, flexible
- Other characteristics
- ATEX, cast iron
- Ultimate vacuum
0.5 mbar, 10 mbar
(0.01 psi, 0.15 psi)- Flow rate
40 m³/h, 48 m³/h
(1,412.59 ft³/h, 1,695.1 ft³/h)- Power
1.1 kW, 1.5 kW
(1.5 hp, 2.04 hp)- Noise level
67 dB
- Weight
42 kg
(92.59 lb)
Description
Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling.
Accessories:
Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages:
available.
Certifications on request:
ATEX
