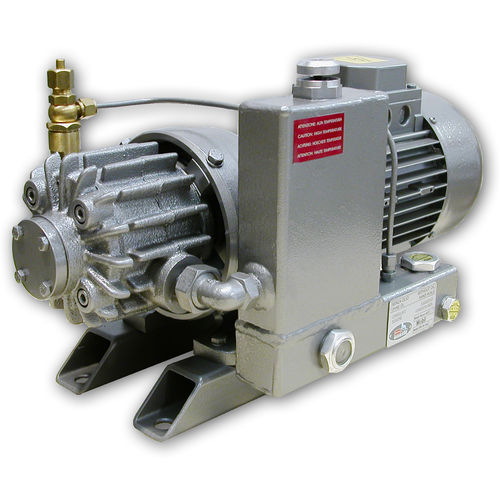

Rotary vane vacuum pump 10Flubricatedsingle-stageATEX
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- lubricated
- Number of stages
- single-stage
- Other characteristics
- ATEX, cast iron, adjustable
- Ultimate vacuum
66 mbar
(0.96 psi)- Flow rate
10.2 m³/h
(360.21 ft³/h)- Power
0.4 kW
(0.54 hp)- Noise level
68 dB
- Weight
17 kg
(37.48 lb)
Description
Cast iron pumping unit coupled directly to the electric motor via an elastic coupler. Oil tank with capillaries and adjustable lubrication drippers. Steel oil/air separator eliminates oil mist discharge, air cooling.
Accessories:
Air filter, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid
Special voltages:
on demand
Special versions:
total oil loss lubrication
Certifications on request:
ATEX
