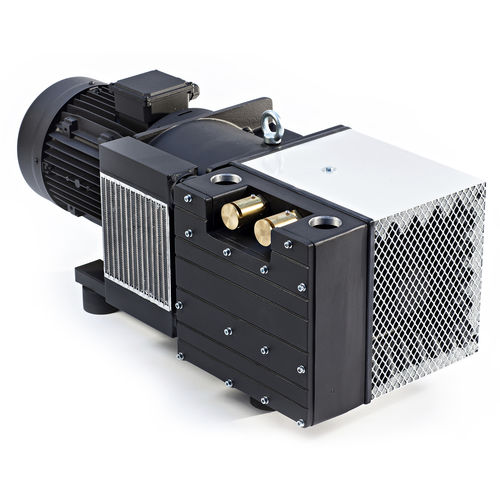

Rotary vane vacuum pump 110 S drysingle-stagesuction
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- dry
- Number of stages
- single-stage
- Applications
- suction
- Other characteristics
- ATEX, cast iron
- Ultimate vacuum
200 mbar, 400 mbar
(2.9 psi, 5.8 psi)- Flow rate
107 m³/h, 128 m³/h
(3,778.67 ft³/h, 4,520.28 ft³/h)- Power
Max.: 7.5 W
(0.01 hp)Min.: 3 W
(0 hp)- Noise level
79 dB, 80 dB
- Weight
Max.: 148 kg
(326.28 lb)Min.: 120 kg
(264.55 lb)
Description
Cast iron pumping unit coupled directly to the electric motor via an elastic coupling, air cooling, suction filtration.
Accessories:
Air filter,vacuum gauge
Special voltages:
on demand
