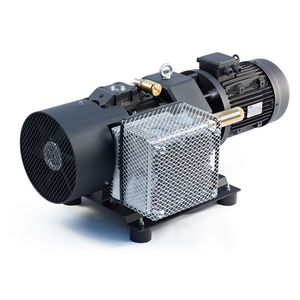

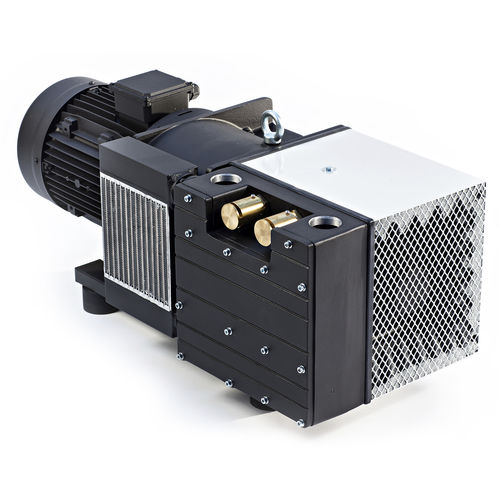

Rotary vane vacuum pump 140 S drysingle-stagesuction
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- dry
- Number of stages
- single-stage
- Applications
- suction
- Other characteristics
- ATEX, cast iron
- Ultimate vacuum
200 mbar, 400 mbar
(2.9 psi, 5.8 psi)- Flow rate
146 m³/h, 175 m³/h
(5,155.94 ft³/h, 6,180.07 ft³/h)- Power
Max.: 9.2 kW
(12.51 hp)Min.: 4 kW
(5.44 hp)- Noise level
79 dB, 80 dB
- Weight
Max.: 159 kg
(350.53 lb)Min.: 127 kg
(279.99 lb)
Description
Cast iron pumping unit coupled directly to the electric motor via an elastic coupling, air cooling, suction filtration.
Accessories:
Air filter, vacuum gauge.
Special voltages:
on demand
