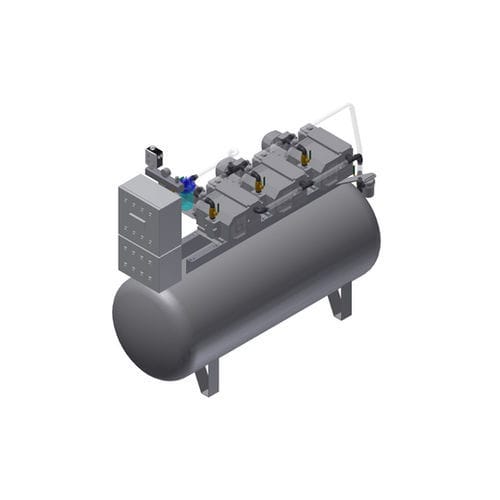

Lubricated vacuum unit MEDEVICE 3×41 for medical applications
Add to favorites
Compare this product
Characteristics
- Configuration
- lubricated
- Applications
- for medical applications
- Flow rate
Max.: 144 m³/h
(5,085.31 ft³/h)Min.: 40 m³/h
(1,412.59 ft³/h)- Suction pressure
10 mbar
(0.145 psi)
Description
Vacuum system consisting of 3 rotary vane vacuum pumps with oil injection lubrication assembled on horizontal tank reducing clearance requirements, primary electrical panel, emergency electrical panel and double bactericidal filter.
The pumps are equipped with:
vibration absorbing feet, non-return valve, manual insulation valve and an inlet safety filter.
Catalogs
No catalogs are available for this product.
See all of Srl‘s catalogs
