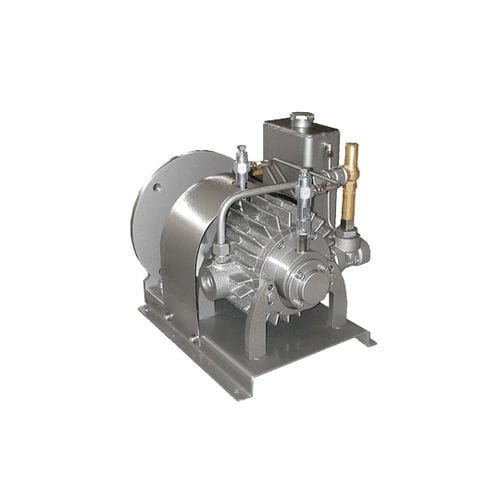

Rotary vane compressor 40C airhydraulic motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- hydraulic motor
- Portability
- stationary
- Applications
- tank
- Other characteristics
- direct-drive
- Pressure
0.5 bar, 1 bar, 1.5 bar
(7.25 psi, 14.5 psi, 21.76 psi)- Flow
24 m³/h, 25 m³/h, 26.8 m³/h
(847.55 ft³/h, 882.87 ft³/h, 946.43 ft³/h)- Weight
47 kg
(103.6 lb)- Noise level
71 dB
Description
Cast iron pumping unit coupled directly to the hydraulic motor via an elastic coupler. Oil tank with capillaries and adjustable dripper for total loss oil lubrication. Air cooling.
Accessories:
by-pass – safety valve – Air filter – gauge
Certifications on request:
on demand
Certifications on request:
ATEX
Catalogs
40 C
2 Pages
