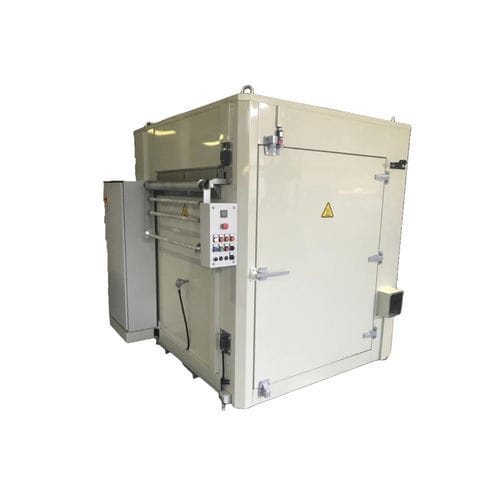

Chamber oven Table 900

preheatingelectrichot air

FILM PREHEATING OVENS for P.P. – P.E.T. and other materials. Heating by hot air with temperatures up to 160°. A set of idle cylinders, motorized silicon rubber pulling cylinder with corresponding contrast cylinder, fiber optic photocell for pulling cylinder control are mounted inside so as to feed the thermoforming machine. Total length of inner oven film from 15 to 19 meters. It is also equipped with automatic material crimping system , so as to facilitate the material crimping, without manually providing to wrap the film on the cylinders to have inside it from 15 to 19 meters of film, this operation will be done automatically when the door is closed. Complete supply of electric control panel for air recirculation fan, rubber cylinder inverter control and related photocell and air thermoregulation. Main features Uses and application Simplicity and speed of leaf feeding High efficiency and optimal temperature distribution Optimized insulation insulation Improves thermoformability of polypropylene materials
