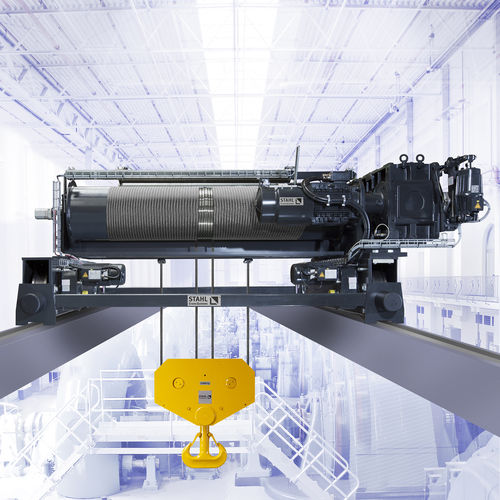

Electric winch SHW 8

wire ropehoisting400 V

The SHW 8 winch program is based on the tried-and-tested SH wire rope hoist program and is designed for the high-load bracket up to 160,000 kg. Its strong hoist motors and robust, low-maintenance design make it ideal for tough everyday use. Compared to wire rope hoists, winches only need a few rope reevings even for high loads, making a very compact construction possible. To enable a variety of different economical solutions, there are three motors up to 38 kW with two speeds in a ratio of 1:6 available for the SHW 8 winch. For higher ease of use, there are six hoist motors up to 98 kW with stepless speed control. All travel drives are equipped as standard with soft start. The SHW 8 winch is available on request with high-performance frequency inverters or with individually adapted speeds. The winch programme is also available in explosion-proof design for Zone 1, Zone 2, Zone 21 or Zone 22. • Thousands of proven series components of the SH series • Modular design for economical individual solutions, easy transport and fast assembly • All travel drives with smooth start-up behaviour • Overload shutdown is already preset during production • Compact height due to innovative design of the cable drive This SHW 8 winch is designed for particularly high speeds and equipped with tool grippers. The SHW 8 winch is particularly easy to maintain, and its clear design makes it easier for the service technician to access all important components. The modular design of the SHW 8 winch makes it possible to transport the winches in individual parts and to quickly assemble them on site.
