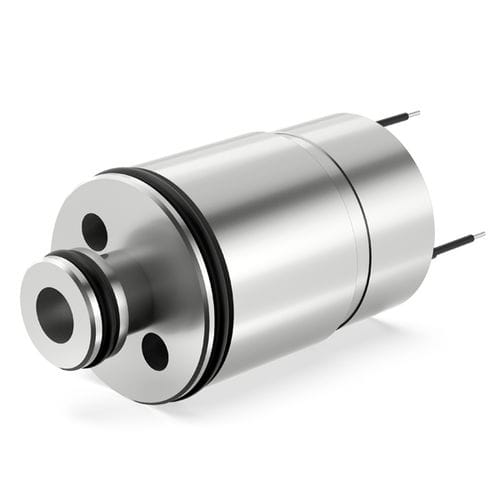

Micro solenoid valve VA 204-103direct-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for gas
- Body
- micro, stainless steel
- Other characteristics
- cartridge
- DN
21 mm
(0.827 in)- Voltage
6 V, 9 V, 12 V, 24 V
- Temperature
50 °C
(122 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)
Description
The Spider microvalve of the type VA 204-103 is a 2-way solenoid valve direct actuated, NC (normaly closed) . This miniaturized valve achieves due to its low mass of the patented Spider valve armature switching times in the millisecond range. Due to the small size, the minimal energy consumption and the low weight of just 0,06 kg it is also optimally positioned for use in portable or mobile systems.
Important specifications
Application - Neutral and mildly aggressive liquids, gases and vapors
Way function - 2-way function NC
Possible seals - NBR EPDM FPM FFKM
Connection - Cartridge
Kv-value - ≥ 0,070 m³/h
Catalogs
No catalogs are available for this product.
See all of Staiger GmbH & Co. KG‘s catalogs
