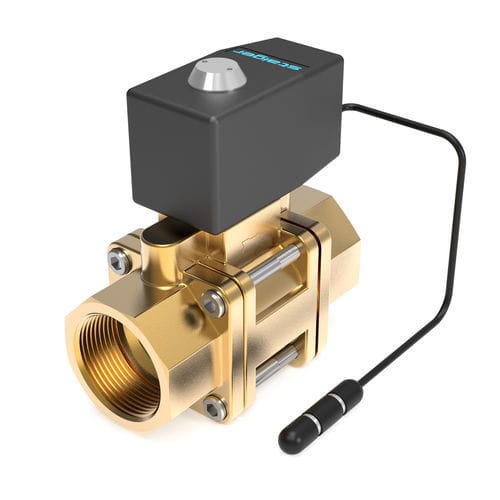

Water leak detector MW 202-001

electronicautomatedwith audible signal

Water guards are a functional system consisting of electronically actuated solenoid and sensorics. These leak detectors are installed wherever sensitive technology meets electroconductive liquids. This technology is most frequently applied in laboratory facilities as well as for water connections in homes and commercial buildings. Function Upon energizing, the control electronics opens the solenoid valve. The sensor can monitor a water film of approximately 0.5 mm and sends a signal to the electronics. The solenoid valve is closed and an audible alarm sounds. This state is reset by interrupting the power supply. Installation The solenoid valve is installed in the supply line of the water supply. The sensor is located on the floor and is connected by a cable to the water monitor. Magnetic coil and control electronics are installed in a plastic housing. Power is supplied via a mains cable with Schuko adapter. MW 202-001 The water guard of the type MW 202-001 is a functional system consisting of an electronically controlled solenoid valve and sensors. After switching on the mains voltage, the electronics open the solenoid valve. The sensor detects a water film from approx. 0.5 mm and sends a signal to the control electronics. The solenoid valve is closed and an acoustic alarm signal is triggered. The solenoid valve is installed in the water supply line. Important specifications Application: Neutral, electrical conducting liquids, water Way function: 2-way function NC Possible seals: NBR EPDM FPM Connection: G1 1/4 Kv-value: ≥ 21,00 m³/h Nominal size: 32,00 mm Weight: 1,80 kg Voltages AC: 230 V Pressure range AC: 0,5 - 10 Bar
