Translation stage 8MVT100-25-1 series
verticalmotorized1-axis

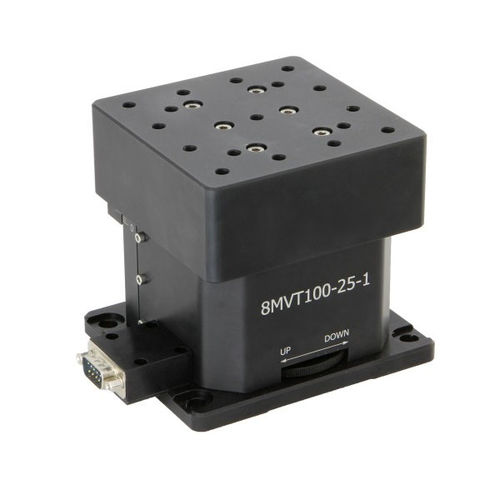

Translation stage - 8MVT100-25-1 series - Standa - vertical / motorized / 1-axis
Translation stage - 8MVT100-25-1 series - Standa - vertical / motorized / 1-axis
Add to favorites
Compare this product


Characteristics

Orientation
translation, vertical
Type
motorized
Number of axes
1-axis
Other characteristics
compact
Stroke

26 mm
(1.024 in)

Speed

0.02 m/s
(0.07 ft/s)

Description

High precision High speed (up to 20 mm/sec) Loads up to 8 kg Compact design Direct drive actuator Perfectly stacks with 8MR190, 8MR191-2 rotators and 8MT167 translators Fits metric and imperial mounting hole patterns
