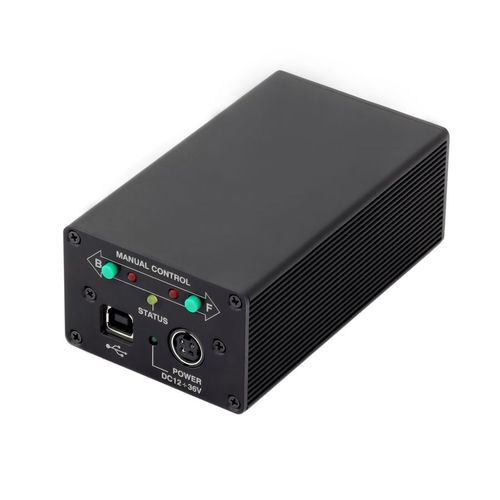

DC motor controller 8SMC5-USB seriesstepper4-axis
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- stepper
- Other characteristics
- 4-axis
- Input voltage
Max.: 48 V
Min.: 2 V
- Output voltage
3 V, 5 V
- Current
Max.: 6 A
Min.: 0.1 A
Description
Compatible with Windows XP/Vista/7/8/10, Linux, Mac OS
Saving files to flash/file
Precise home positioning
Synchronization I/O
User Friendly XILab Interface
Step Mode Up to 1/256
Step Loss Compensation
Rated current up to 3 A for stepper; 6 A for DC motor
Voltage 2 V - 48 V
Code Examples for Visual Basic, C, C#, C++, Matlab, Labview
Ready to use Configuration files for Standa stages
Status LEDs
Max. speed - 35000 steps/s (stepper); 800000 encoder counts per second (DC)
Encoder Input
Compatibility with 8SMC1-USBhF
Supports up to 32 axes in single USB port (more on request)
Manual control buttons
Control 8SMC5-USB via Ethernet
