- Isolation transformer
- StandexMeder Electronics GmbH

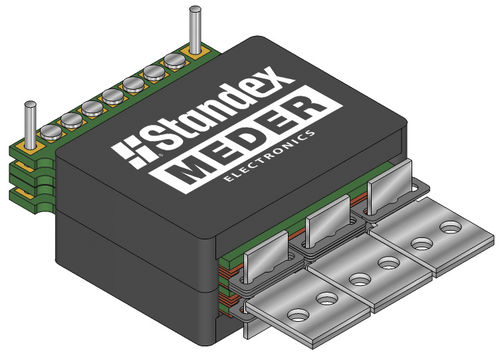

Isolation transformer P350single-phaseSMDplanar
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Electrical characteristics
- single-phase
- Mounting
- SMD
- Other characteristics
- planar
- Electric power
Max.: 6,000 W
(8.1577 hp)Min.: 2,000 W
(2.7192 hp)
Description
Rated power 2kW-6kW / Frequency range 40-150kHZ
Topology - Full Bridge, Half Bridge, Full Bridge ZVS,
Push-Pull
Current rating max. 300A
Isolation voltage pri-sec/pri-core 500- 5,000VDC
Soft switching, single or multiple outputs
Different switching frequencies, input/output voltages
Primary turns - other number (no fractions)
Secondary Ns1, Ns2 / Ns3 turns 1- 8 (no fractions)
Thermal solutions heat sinks, etc.
