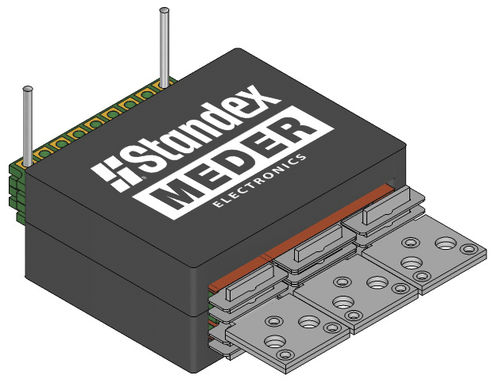

Isolation transformer P560single-phaseSMDplanar
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Electrical characteristics
- single-phase
- Mounting
- SMD
- Other characteristics
- planar
- Electric power
Max.: 10,000 W
(13.5962 hp)Min.: 3,000 W
(4.0789 hp)
Description
Rated power 3kW-10kW / Frequency range 40-125kHZ
Topology - Full Bridge, Half Bridge, Full Bridge ZVS,
Push-Pull
Current rating max. 400A
Isolation voltage pri-sec/pri-core 500- 5,000VDC
Soft switching, single or multiple outputs
Different switching frequencies, input/output voltages
Primary turns - other number (no fractions)
Secondary Ns1, Ns2 / Ns3 turns 1- 8 (no fractions)
Thermal solutions heat sinks,
