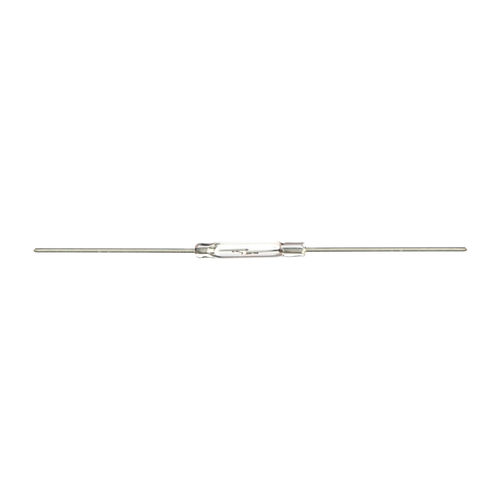

Miniature reed switch GP560
Add to favorites
Compare this product
Characteristics
- Size
- miniature
Description
Miniature reed switch featuring high stability (GP). Glass length of 14.2mm and diameter of 2.3mm. Rated power 10 W, Switching voltage 200 V DC, Switching current 1 Amp DC/AC. Most used.
Specifications:
Overall Length mm (inches) 54.0 (2.125)
Glass Length Max. mm (inches) 14.2 (0.559)
Glass Dia. Max. mm (inches) 2.30 (0.090)
Lead Dia. mm (inches) 0.6 (0.023)
Contact Form 1A (SPST) Normally Open (N.O.)
Pull-In Range 10-50 AT
Rated Power Max. 10 W/200 V DC/1 Amp DC/AC
Applications:
Automotive, general purpose, industrial
