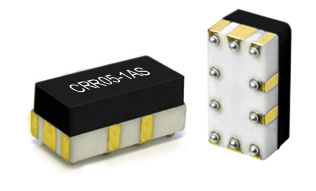

1 NO/NC reed relay CRRultraminiatureSMDlow-profile
Add to favorites
Compare this product
Characteristics
- Contact configuration
- 1 NO/NC
- Features
- ultraminiature, SMD, low-profile
- Switching current
0.5 A
Description
Ultraminiature surface mount (SMD) low-profile CRR Series Reed Relay with high insulation resistance (IR) typical 10^13 Ω. Instrumentation grade relay comes in a rugged thermoset overmolded package with ceramic substrate. Supplied in tape and reel according to IEC 286/part 3. Ball grid array (BGA) optional. UL approval.
Specifications
Coil Voltage (VDC) 3, 5
Coil Resistance (Ω) 70-150
Contact Form 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.)
Rated Power Max. 10W/170VDC/0.5A
Catalogs
CRR SERIES REED RELAY
3 Pages
Databook Reed Technology_EN
100 Pages
