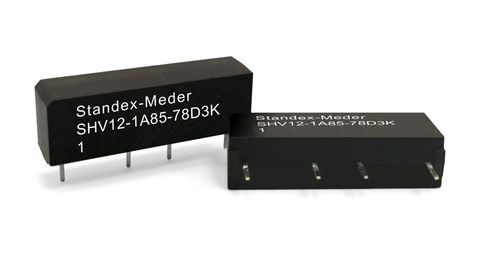

High-voltage reed relay SHV
Add to favorites
Compare this product
Characteristics
- Other characteristics
- high-voltage
- Switching current
1 A
Description
The SHV reed relay is a single in-line and high voltage relay or instrumentation grade reed relay supplied in a molded housing, capable of switching up to 1kVDC and breakdown voltage of 4kVDC. This high voltage reed relay series features an insulation resistance >5 x 10^12 Ω and utilizes minimum PCB area, at only 50% compared to our DIP and DIL reed relay series. It is even smaller than the former potted SIL-HV Reed Relay.
Specifications
Coil Voltage (VDC) 05, 12
Coil Resistance (Ω) 140-500
Contact Form 1A (SPST) Normally Open (N.O.)
Rated Power Max. 100W/1,000VDC/1A
