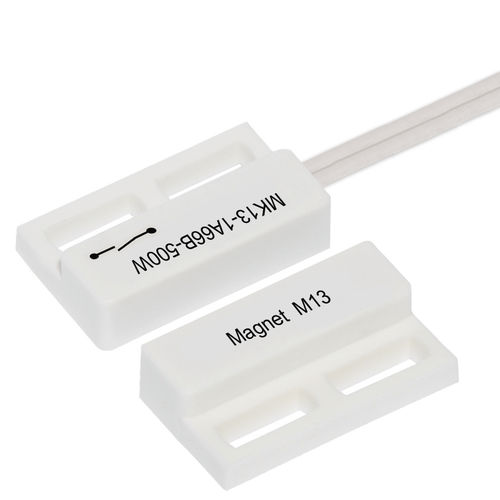

Reed magnetic sensor MK13 Series

Best value screw fastened flange mount MK13 Series Reed Sensor in a rectangular housing with cable terminals. Used in position, proximity, motion, level, and end limit sensing. Optional internal switch, cable, length, and termination. UL Approval Specifications Contact Form 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover Operating Range 10-60 AT Rated Power Max. 10 W/400 V DC/0.5 A Applications Industrial, security, white goods
