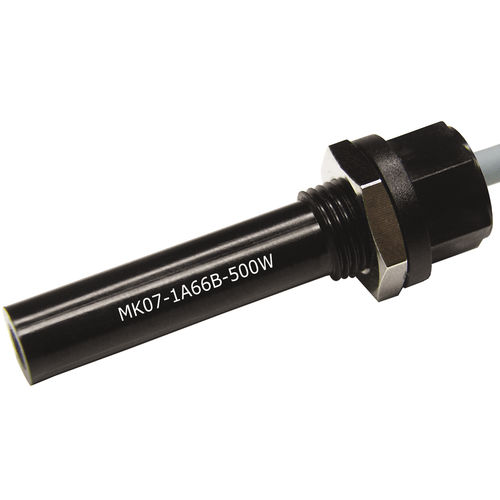

Reed magnetic sensor MK07 Series

Plastic M8 adjustable thread mount MK07 Series Reed Sensor are supplied in a cylindrically shaped housing with cable terminals. Used in position, level, and end limit detection w/convenient sensing adjustment. Optional internal switch, cable, length, and termination. UL Approval Specifications Contact Form 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover Operating Range 10-60 AT Rated Power Max. 10 W/200 V DC/0.5 A Applications Industrial, security, white goods
