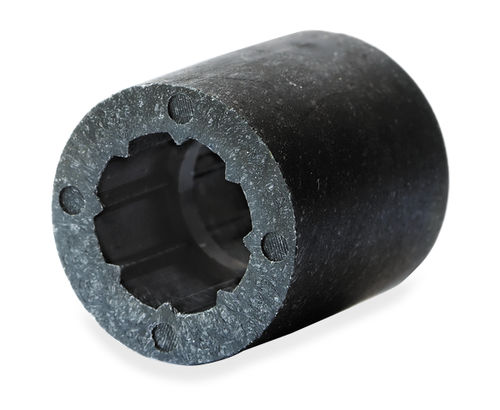

Magnetic float MS04-PP

The MS04-PP Series Magnetic Float ring actuator magnet (centric) have excellent buoyancy with water absorption of only 0.1%. They are also highly resistant to chemical solvents, bases and acids making them an excellent choice for water-level sensors, automotive applications and producers of manufacturing and plant equipment. Suitable for stems with an outer diameter up to 9.5mm; float is foam. Actuator magnet is contained within the float though partially exposed to the liquid material. Compatible with Liquid Level Sensor series LS01, LS02, LS02-S, LS04, LS05. Specifications Outside Dia. mm (inches) 18.5 (0.728) Inside Dia. mm (inches) 10.2 (0.401) Height mm (inches) 20.0 (0.787) Applications Chemical solvents, bases and acids in water-level sensors, automotive applications and producers of manufacturing and plant equipment. Compatible with the LS01, LS02, LS02-S, LS04, LS05 liquid level sensor series.
