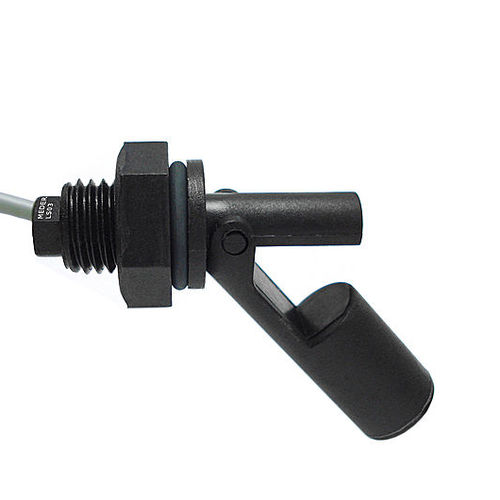

Magnetic float level switch LS03for liquidsthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Mounting
- threaded
- Process temperature
Max.: 150 °C
(302 °F)Min.: 0 °C
(32 °F)
Description
Compact single level horizontal mount LS03 Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other cables and connectors. High temperature resistance up to 150°C.
Specifications
Contact Form 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover
Rated Power Max. 100 W/400 VD C/1 A
Shaft/Float PA, PP/PA, PP
Applications
Automotive, appliance, HVAC/R, test & measurement
Catalogs
LS03 Series Data Sheet
3 Pages
