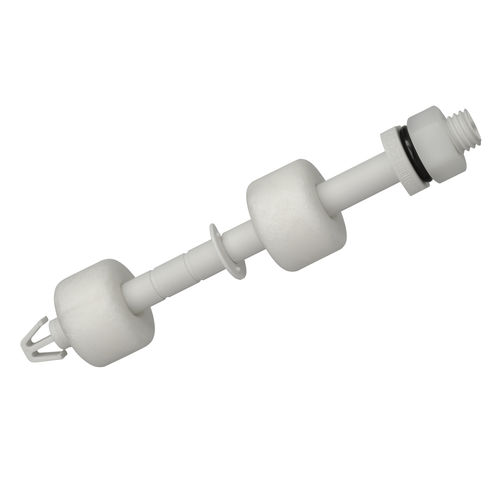

Magnetic float level switch LS04for liquidsfor tankthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Applications
- for tank
- Mounting
- threaded
- Other characteristics
- multi-point
- Process temperature
Max.: 70 °C
(158 °F)Min.: -30 °C
(-22 °F)
Description
Versatile LS04 Series Liquid Level Sensor for single, multi and continuous level control, detection and monitoring. Reservoir, tank, bottle or other container mounting configurations. Up to 6 floats, 1W-100W rated power, other cables, connectors.
Specifications
Contact Form 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover, 1E Latching/Bistable
Rated Power Max. 100 W/400 V DC/1 A
Shaft/Float PP/PP, NBR
Applications
Automotive, appliance, aviation, food & beverage, industrial, laboratory, marine
