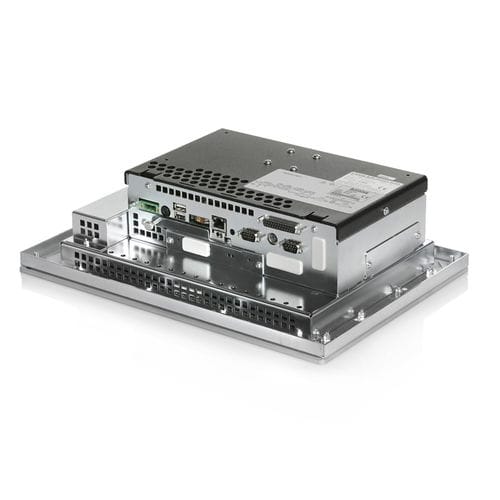

Compact PLC SE-607

integratedwith integrated I/Owith touch screen

Industrial Control SE-607 Features The SE-607 controller is equipped with a high-contrast 10,4 inch TFT touch display. A 600MHz fast Pentium based 32bit processor ensures fast signal processing. A user friendly operation is achieved via the clearly arranged control dialogue and touch operating keys. The operating system VxWorks provides an extremely high operational reliability. A IEC61131 PLC (CoDeSys) operates in the control which achieves the performance of a middle hardware PLC. The well-known advantages of CoDeSys such as fast setting, practical and user friendly handling and high performance can be benefited from. All data are stored on a Compact Flash Card (CF). Field bus communication is made via STANGE remote CAN peripherals, optionally Profibus. The connection to a process control system is made via a TCP/IP interface (100Mbit). The integrated web server makes the operation through remote control possible via the Internet browser. The requirements of modern furnace engineering have influenced the development of software applications considerably. Up to 50 control zones are processed by the control. The alarm processing stores up to 500 messages and displays these in the alarm history. The integrated recipe manager enables the creation of a maximum of 250 recipes (programs). The programmer processes up to 50 set values and 64 control tracks. 8 login levels increase the working reliability. The access privileges are defined for configuration and operation. Process visualization and a 32 channel recorder (option) are integrated as well. The provided OPC server allows access to the internal data of the control. Application fields:
